Automatic Tube Laser Cutters by TOPTEK: Revolutionizing the International Metal Market

JINAN, SHANDONG, CHINA, September 2, 2026 /EINPresswire.com/ — Where Traditional Tube Processing Loses Time and Material

A single piece of rectangular steel tubing destined for a furniture frame or a handrail assembly might pass through four separate stations before it is ready for welding: band-saw cutting, punch-press slotting, manual deburring, and a final trim on a miter saw to correct the angle. Each re-clamping introduces positional error. Each handling step adds labor minutes. And every saw kerf turns usable steel into chips on the floor.

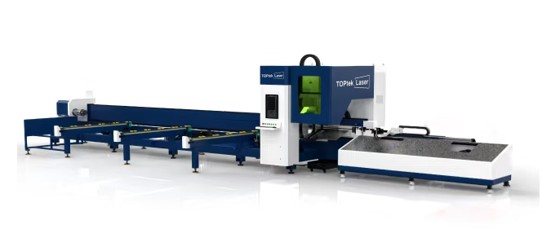

This multi-step workflow has persisted in tube fabrication largely because no single conventional machine could cut, hole-punch, and bevel a profile in one setup. That limitation is exactly what laser tube cutting was designed to eliminate. TOPTEK LASER offers a range of Automatic Tube Laser Cutters for the International Metal Market—spanning dedicated tube machines and combination sheet-plus-tube platforms—that consolidate cutting, hole-making, notching, and bevel preparation into a single automated cycle. The tube never leaves the chuck between operations, which removes the accumulated tolerance stack-up that plagues multi-station processing and reduces raw-material waste by tightening the nesting of parts along each bar length.

Self-Centering Chucks and Automatic Profile Compensation

Handling round, square, rectangular, and open profiles in one setup

Tube stock is not always perfectly straight, and its cross-section is not always perfectly symmetrical. Oval distortion at the tube end, slight bow along the length, and dimensional variation between suppliers can all cause the laser focal point to drift off the intended cut line if the machine relies on fixed V-blocks for positioning.

TOPTEK’s automatic tube laser cutters address this with pneumatic and hydraulic self-centering chucks that grip the workpiece concentrically regardless of profile shape—round, square, rectangular, or open-section—across a diameter range that varies by model from 20 mm up to 600 mm. Once the tube is loaded, the system performs an automatic length measurement and compensates for end-face irregularities before the first cut begins. This measuring-and-compensation routine keeps the cut plane perpendicular to the tube axis even when the incoming material is not perfectly uniform, a detail that pays dividends downstream when welded joints need to close tightly without excessive filler.

Bevel Cutting and Nesting Software That Reduce Secondary Operations

Weld-ready edges straight off the machine

In structural and piping applications, tube ends frequently require a V-groove or Y-groove bevel to achieve full-penetration welds. Traditionally, this means transferring the cut tube to a beveling machine or a manual grinder—another handling step, another source of angular error. TOPTEK’s higher-specification tube laser cutters incorporate a swing cutting head with plus or minus 45-degree A/B axis rotation, producing bevel profiles directly during the laser cutting cycle. The tube comes off the machine weld-ready, with no secondary milling or grinding required.

Auto-nesting to minimize bar-end waste

Material cost is a line item that tube fabricators watch closely, and the unusable remnant at the end of each bar represents pure loss. TOPTEK’s tube cutting systems include auto-nesting software that calculates optimal part sequencing along the bar to minimize remnant length. The software also accounts for kerf width and common-line cutting opportunities where adjacent parts share a cut edge. For shops processing mixed orders—several different part lengths from the same bar stock—this algorithmic nesting can noticeably reduce the scrap percentage over the course of a production shift compared to manual layout.

Quality Assurance: Full-Stroke Dry Runs and Optical Alignment Verification

Before any TOPTEK tube laser cutter ships, it goes through a validation sequence that mirrors actual production conditions. The complete machine—chuck assemblies, feed system, laser source, cutting head, and enclosure—runs a full-stroke dry cycle at rated speed to verify mechanical synchronization across all axes. Following the dry run, sample tubes are cut using the customer’s specified parameters, and the resulting parts are measured for dimensional accuracy, cut-face perpendicularity, and burr height.

Laser power output and beam coaxiality are checked with calibrated instruments and recorded in the machine’s individual quality file. Enclosed tube cutter models carry CE marking and comply with applicable EN standards for electrical and laser safety. This documentation accompanies the machine to the installation site, providing the customer’s quality team with a verified baseline from which to track long-term performance.

The rigor of this process reflects a broader engineering discipline at TOPTEK. The company’s production facility in Jinan, Shandong Province—China’s largest laser manufacturing hub—covers more than 35,000 square meters and supports the assembly, testing, and customization of each system under one roof. Key components, including laser sources, cutting heads, and precision drive systems, are sourced from international premium brands, consistent with a design philosophy aligned to European and North American standards.

Customization, Global Reach, and Engineer-Led Support

Tailored configurations for non-standard requirements

Not every tube fabrication job fits a catalog machine. Some customers process unusually large or heavy profiles; others need a combination sheet-and-tube platform to consolidate two machines into one footprint. TOPTEK supports non-standard chuck sizing, bed-length adjustments, and dual-purpose configurations as part of its standard project-engineering workflow—an advantage of manufacturing everything in-house rather than assembling third-party modules.

Responsive service across continents

With more than 10,000 laser systems operating in over 80 countries and regions, TOPTEK maintains overseas service centers in South Korea, Turkey, and Europe to provide spare-parts inventory, on-site installation assistance, and operator training. Every sales contact at the company has an engineering background, so discussions about tube wall thickness, assist-gas selection, or chuck jaw configuration happen in technical terms from the first conversation. For buyers attending international exhibitions, TOPTEK has participated in events such as FABEX Saudi Arabia, offering the opportunity to see equipment and discuss applications in person.

Consolidating Tube Processing Into a Single Automated Cycle

The case for automatic tube laser cutters comes down to eliminating the handling steps, re-clamping errors, and secondary operations that fragment traditional tube fabrication. TOPTEK LASER’s platform—built around self-centering chucks, swing-head bevel cutting, auto-nesting software, and full-machine pre-shipment validation with international-grade components—delivers that consolidation in a production-ready package backed by cross-border engineering support.

For fabricators interested in sample cuts on their own tube profiles or guidance on model selection for specific production requirements, TOPTEK’s technical team is available for consultation.

To learn more or request a project review, visit: https://www.topteklasercnc.com
